FoxHUNTER: drone detection for encrypted drones
Completely Protocol-agnostic – No pre-trained signal libraries required. Detects both encrypted and frequency-hopping drones.

What is the FoxHUNTER?
The TrackDeep FoxHUNTER is a next-generation RF geolocation sensor system that detects and pinpoints the location of any radio frequency emitter – including encrypted and non-compliant drones. Using Time Difference of Arrival (TDoA) multilateration, FoxHUNTER provides precise 2D or 3D positioning with up to 10–15 m accuracy across 200–450 km² coverage.
Unlike traditional fingerprint-based solutions, FoxHUNTER is protocol-agnostic – if a device transmits, it can be located. By analyzing movement trajectories, the system distinguishes between drones, stationary emitters, and ground-based sources.
FoxHUNTER is designed for counter-UAS integrators, security providers, and defense operators who require large-area coverage and reliable detection of advanced drone threats, including those using OcuSync 4 and other encrypted links.
Key Features
- Encrypted Drone Detection
Locates encrypted and non-cooperative drones, including DJI OcuSync 4. - High-Precision Geolocation
Time Difference of Arrival (TDoA) multilateration delivers 2D/3D positioning with 10–15 m accuracy across 200–450 km². - Trajectory-Based Classification
Identifies drones by their movement patterns and separates them from ground or stationary emitters. - Protocol-Agnostic & Future-Proof
Covers multiple frequency bands – WiFi today, expanding to 600–8000 MHz – without relying on signal libraries. - Large-Area Coverage
Deploy a scalable sensor network for city-wide or border-wide monitoring. - Seamless Integration
Supports MQTT & API for cloud or on-premises deployment, compatible with TrackDeep and third-party C2 platforms. - Rugged & Reliable
Built for harsh environments: IP67-rated, operating range –30°C to +50°C, PoE or internal power.
Deployment Options
- Standalone Hardware
Core sensor kit (3 or 4 nodes) with 4x 90° directional antennas per sensor, designed for direct integration into existing C2 or analytics platforms. - Cloud-Enabled Package
Includes a 1-year license for real-time cloud analytics, geolocation visualization, and historical data logging. Provides flexible connectivity via Ethernet or wireless backhaul. - LTE-Connected Solution
Delivered with an integrated LTE modem, antenna, and SIM slot for wireless operation in remote areas. Can also be combined with Starlink or, in extreme environments, optical fiber uplinks for maximum reliability.

Be the First to Deploy FoxHUNTER
Limited Early Adopter Opportunity:
€5,000 deposit secures a 50% discount on one 4-sensor sample kit (covering up to ~450 km²) + 1 year of license & updates.
Strategic Pilot Partner:
€15,000 deposit secures a 50% discount on up to 2 sample kits, 2 years of license & updates, plus on-site installation & setup support.
Deliveries starting Spring 2026. Limited spots available – first come, first served.
For detailed pricing and conditions and technical sheet please contact: andy@trackdeep.ai
Use Cases
Integration with Existing Systems
Acts as a strong complement to radars, optical/thermal cameras, and acoustic sensors by validating detections with precise RF geolocation.
Enhances Remote ID sensors (such as TrackDeep Observer) by adding the ability to detect encrypted and non-cooperative drones.
Replacement of Limitations in Other Technologies
Angle of Arrival (AoA) sensors → FoxHUNTER provides more accurate positioning and altitude data (true 3D) where AoA is unreliable.
Fingerprint/Library-based RF systems → FoxHUNTER is protocol-agnostic and independent of pre-trained signal libraries, staying effective against new or modified threats.
Short-range RF detectors → FoxHUNTER covers 200–450 km² per network, reducing the need for dense deployments of small-range receivers.
Standalone Capability
Serves as the primary RF geolocation layer in environments where radar or optical sensors underperform (e.g., GPS-jammed areas, poor visibility, or night operations).

Technical Specifications
- Location Accuracy
~10 m (ideal), max ~50 m with 3–4 sensor nodes (TDoA multilateration). - Coverage Area

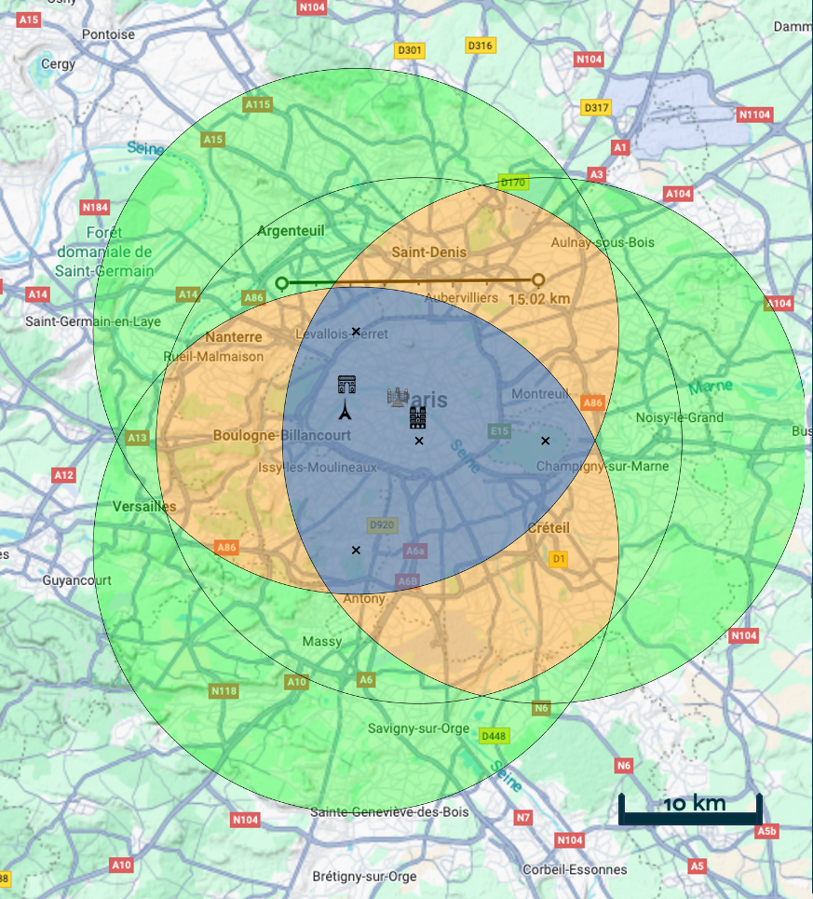

200–450 km² per network deployment (scalable). - Frequencies
Current focus: 2.4 GHz; expandable to 433 MHz, 868 MHz, 915 MHz, 5.8 GHz, and up to 6–8 GHz depending on SDR. - Signal Detection
Protocol-agnostic, detects any RF emitter including encrypted drones. Supports single-pulse detection (~100 µs duration). - Processing Performance
Edge (prototype, Raspberry Pi 5): <3 s per 20 ms block.
Target (Jetson Orin Nano): <100 ms (30–100× faster). - Synchronization
GNSS 1PPS with ~50 ns accuracy between sensors; 0.1 PPM clock stability. - Connectivity
Ethernet, LTE, or IP-based uplink (~3 Mbps per sensor). Options for Starlink or optical fiber backhaul in extreme deployments. - Power Supply
PoE compatible (<60 W). - Operating Temperature
–30°C to +50°C. - Enclosure Rating
Outdoor-ready, water-resistant (IP67). - Output & Integration
MQTT and API for geolocation data and system status.

What’s in the Box – FoxHUNTER (4-Sensor Kit)
The FoxHUNTER system is delivered as a complete 4-sensor kit, ready for deployment. Each sensor is an independent unit that must be installed at a different location to enable accurate TDoA geolocation.
- FoxHUNTER sensor unit – plug-and-play ready
- FoxHUNTER software license – with 1 year of updates & support
- 4× 90° directional antennas (for sector coverage, 360° when combined)
- 1× circular polarization antenna (for wideband omnidirectional coverage)
- Rugged sensor enclosure with SDR & processing unit
- GNSS receiver with 1PPS synchronization
- Mounting hardware (mast/pole/wall)
- Cabling set (Ethernet & power)
- Installation manual (detailed setup guide)
-
Optional Upgrades & Accessories
- Surge Protection & Extended Cable Kits (for outdoor deployments)
- Customized Mounting Solutions (mast/pole, rooftop, wall brackets)
- LTE Modem Upgrade (with antenna & SIM slot for remote operation)
- Starlink Backhaul Kit (for off-grid or mobile deployments)
- Optical Fiber Connectivity Module (extreme/high-security environments)
- Ruggedized Power Solutions (battery pack, solar integration options)
Limited Early Adopter Opportunity
We're opening a limited pre-sale for organizations that understand the urgency
Early Supporter Program
Only €5,000 upfront per sensor set secures your spot in the 1 st production round.
- 50% discount for one sample kit (4 individual sensors, enough to cover 450 km²)
- 1 year of license and updates included
Strategic Pilot Partner
€15,000 upfront per sensor set secures first row seat as strategic pilot partner.
- 50% discount for up to 2 sample kits (2 x 4 individual sensors, enough to cover 2 x 450 km²)
- 2 years of license and updates included
- On-site installation and setup support
Limited spots available - first come, first served.

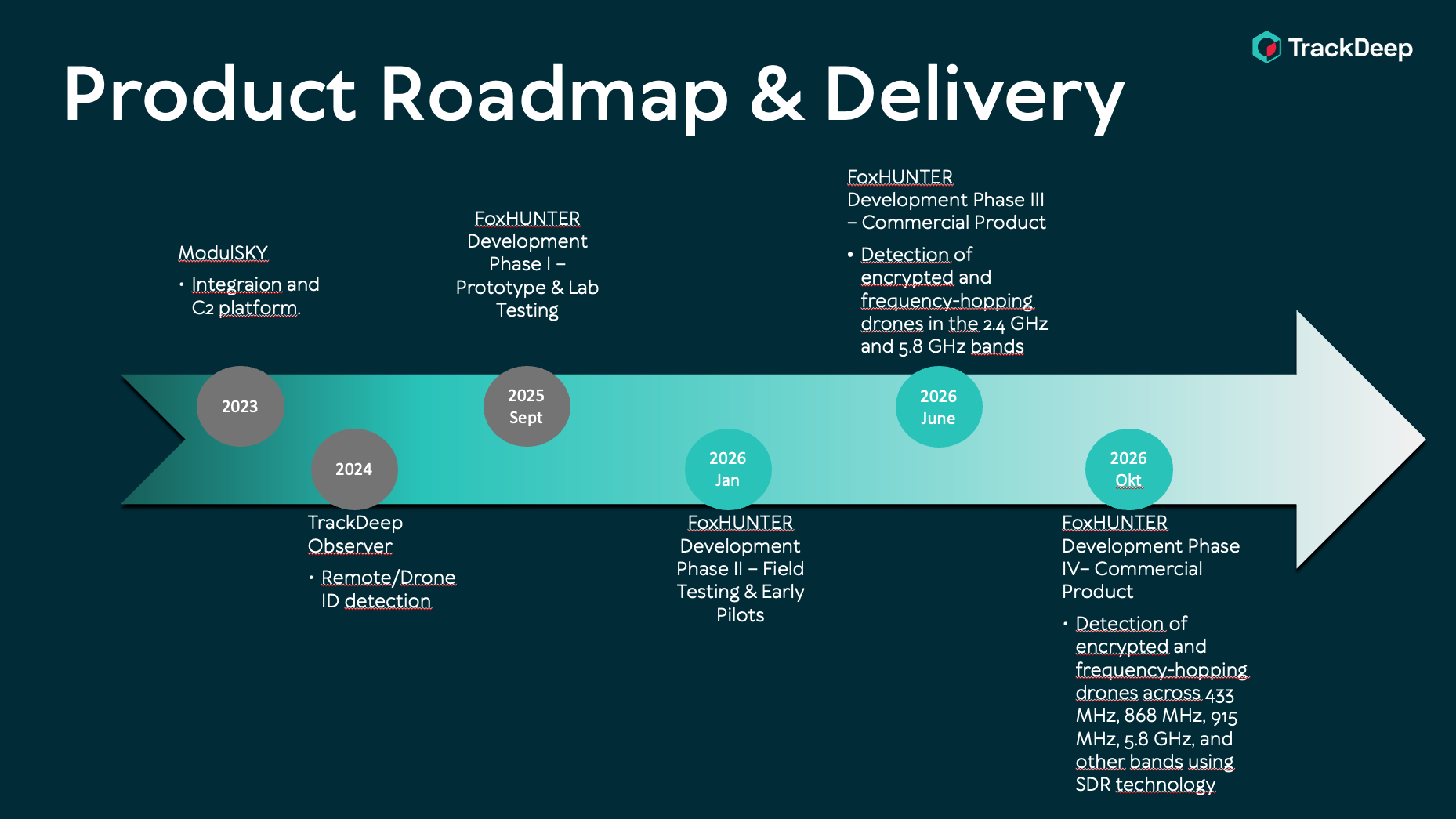

Deliveries starting in Spring 2026
Be the first to field a sensor that redefines Counter-UAS operations – the only system able to detect and geolocate encrypted drones in real time.
By joining the FoxHUNTER early program, you secure not just technology, but a competitive edge in a market that moves fast and rewards first movers.
For detailed pricing and conditions and technical sheet please contact: andy@trackdeep.ai
